Fitting Tools

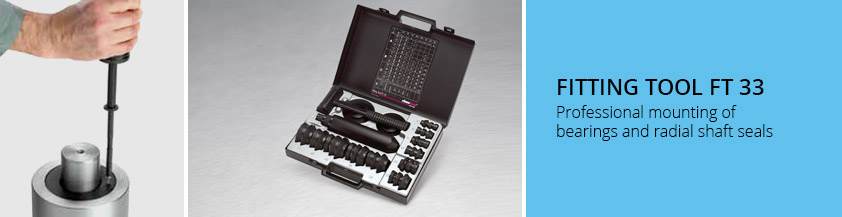

Fitting Tool FT 33
View Video Download PDF Enquire Now

Fitting Tools

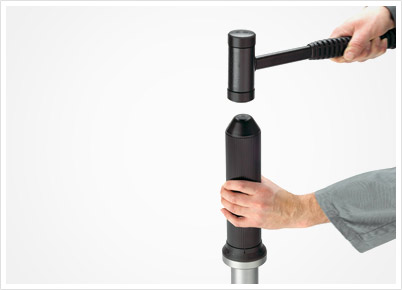

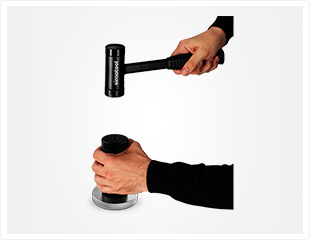

For careful mounting of roller bearings and radial shaft seals. Universal use for bearings with a bore diameter from 10 to 50 mm. Easily carried in a handy case, including a recoilless hammer.

  • 3 impact sleeves and 33 impact rings
  • No mechanical damage of the bearing
  • Also suitable for the mounting of sleeves, sealing rings, pulleys and much more
The combination tool set for quick and easy mounting and dismounting of bearings

The MK 10-30 enables fast and precise installation of bearings with bore diameters of 10-30 mm as well as the extraction of deep groove ball bearings from shafts and from housings of the same series.

The tool set contains a multi-purpose installation tool suitable for the installation of bearings, sliding sleeves, sealing rings, tension rollers as well as similar products.

For extracting deep groove ball bearings from housings and shafts, the kit includes a three-arm puller. The combination of this extractor with a slide hammer and support washers allows easy removal of deep groove ball bearings from housings.

  • The correct combination of impact ring and sleeves ensures that no mounting forces are transmitted via the rolling elements of the bearings, thus minimizing bearing damage due to incorrect mounting
  • The impact rings are made of high-strength modified plastic. The impact sleeves are made of anodized aluminum, this is extremely robust, stable and very light
  • A complete set of different sized extractor arms and spindles simplifies the dismounting of deep groove ball bearings
  • Bearing dismounting from blind housings and from shafts possible
  • All components are available as spare parts
  • The extractor arms were specially developed for precise engagement in the raceways of the bearings. This results in an optimum hold and allows higher dismounting forces.
  • The elastic retaining spring enables easy connection of the puller arms with the spindle
  • All components are clearly arranged in the carrying case for quick selection
  • Fast, precise mounting of bearings, seals, sliding sleeves and adapter sleeves

FT-P

View Video Download PDF Enquire Now

Fitting Tools

The ideal solution for pressing in or on bearings or other ring-shaped components

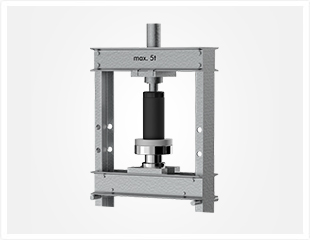

Thanks to the Fitting Tool FT-P - in combination with the mechanical press - a correct assembly of components with an inner diameter of more than 50 mm is guaranteed. The FT-P is the ideal solution for assemblies with greater installation forces, as the tool can be used on presses. It thus allows assemblies that would not be possible by hitting with a hammer.

  • Product designed for use with presses
  • Ideal supplement to the proven simatool Fitting Tool FT 33
  • High-quality aluminum rings that do not deform even with press-in forces of 5 tons
  • All components available as spare parts
  • Compact case with high quality tool parts and glued in instruction manual
  • Also suitable for the installation of sleeves, sealing rings, pulleys, etc.
  • Aluminum rings are clearly marked for quick and easy selection

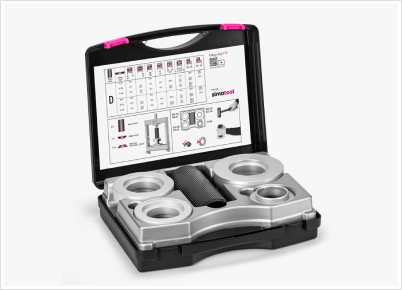

Scope of delivery
  • 6 aluminum rings
  • 1 sleeve
  • 1 FT-P DC adapter ring (in combination with FT 33)
Application areas of the FT-P
  • General mechanical engineering
  • Electric motor production
  • Vehicle industry, cars and trucks
  • Construction machinery
  • Conveyor technology
  • The tool can be used on presses up to a max. press-in force of 5 tons

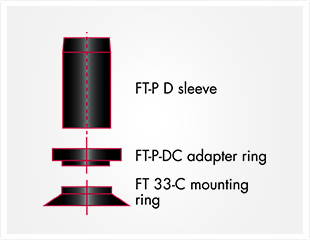

  • Thanks to the special DC adapter of the FT-P tool, the C-rings of the simatool FT 33 can also be used on presses
  • Significantly lower forces are required to mount seals. Seals with an inner diameter of up to 60 mm can thus be easily mounted by striking with the plastic faced non-rebound hammer

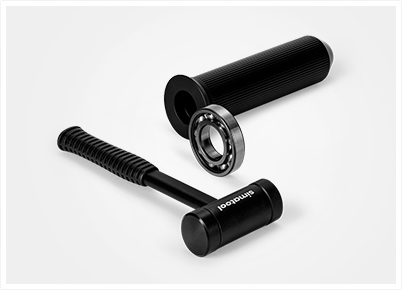

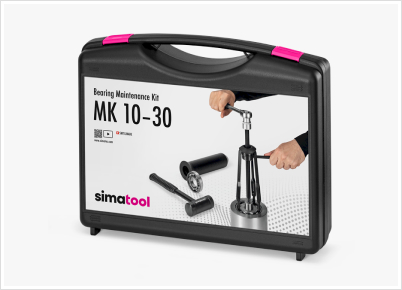

MK 10-30

View Video Download PDF Enquire Now

Fitting Tools

The combination tool set for quick and easy mounting and dismounting of bearings

he MK 10-30 enables fast and precise installation of bearings with bore diameters of 10-30 mm as well as the extraction of deep groove ball bearings from shafts and from housings of the same series.

The tool set contains a multi-purpose installation tool suitable for the installation of bearings, sliding sleeves, sealing rings, tension rollers as well as similar products.

For extracting deep groove ball bearings from housings and shafts, the kit includes a three-arm puller. The combination of this extractor with a slide hammer and support washers allows easy removal of deep groove ball bearings from housings.

  • The correct combination of impact ring and sleeves ensures that no mounting forces are transmitted via the rolling elements of the bearings, thus minimizing bearing damage due to incorrect mounting
  • The impact rings are made of high-strength modified plastic. The impact sleeves are made of anodized aluminum, this is extremely robust, stable and very light
  • A complete set of different sized extractor arms and spindles simplifies the dismounting of deep groove ball bearings
  • Bearing dismounting from blind housings and from shafts possible
  • All components are available as spare parts
  • The extractor arms were specially developed for precise engagement in the raceways of the bearings. This results in an optimum hold and allows higher dismounting forces.
  • The elastic retaining spring enables easy connection of the puller arms with the spindle
  • All components are clearly arranged in the carrying case for quick selection
  • Fast, precise mounting of bearings, seals, sliding sleeves and adapter sleeves
Scope of delivery
  • 21 impact rings
  • 2 impact sleeves
  • 1 non-rebound hammer
  • 1 sliding hammer
  • 2 spindles
  • 5 sets of puller arms
  • 7 support rings
  • 1 counter bracket
Application areas of the MK 10-30
  • General manufacture and maintenance in plant and mechanical engineering
  • Maintenance of scooters and motorcycles
  • Service fleets for on-site maintenance
  • Maintenance of electric motors
  • Maintenance of pumps
  • Gearbox maintenance
  • Conveyor maintenance
